Actual Anchor Loads



I spent a LOT of time researching this topic, through the literature and by staring at a load cell for hours and hours. I used all sorts of rodes and snubbers, in all weather, on a number of boats.

ABYC (American Boat and Yacht Council) set standards for rodes and deck hardware 50 years ago, based on testing with boats on all-chain rode in open harbors and shallow water (but no breaking waves) and no snubber. In fact, these values are VERY close to what I got testing in similar conditions. This is very much a worst case situation and is something you should NEVER do, but is a good basis for the design of something that cannot fail. I don't think I've ever heard of a system meeting Table 1 requirements that was in good repair failing, outside the eye of a huricane (an even then it isn't the chain that breaks; they either drag or the roller and cleats fail.


Interestingly, every investigator reported 3-5 times less when they measured the strain on their boat (me too). Of course, they wisely anchored in deeper water (lower waves and more catenary), used rope, or used a snubber.

Looking only at the 60 knot row, which is very likely the most you will ever face without some protection from trees or shoreline, we see that the wind load is only about 20-25% of the ABYC load. Waves and snatching make up the rest. If you use a long chain in deep water (at least 20 feet), a long  snubber (35'-50'), or a rope rode, the load will be only 25-30% of the ABYC value.

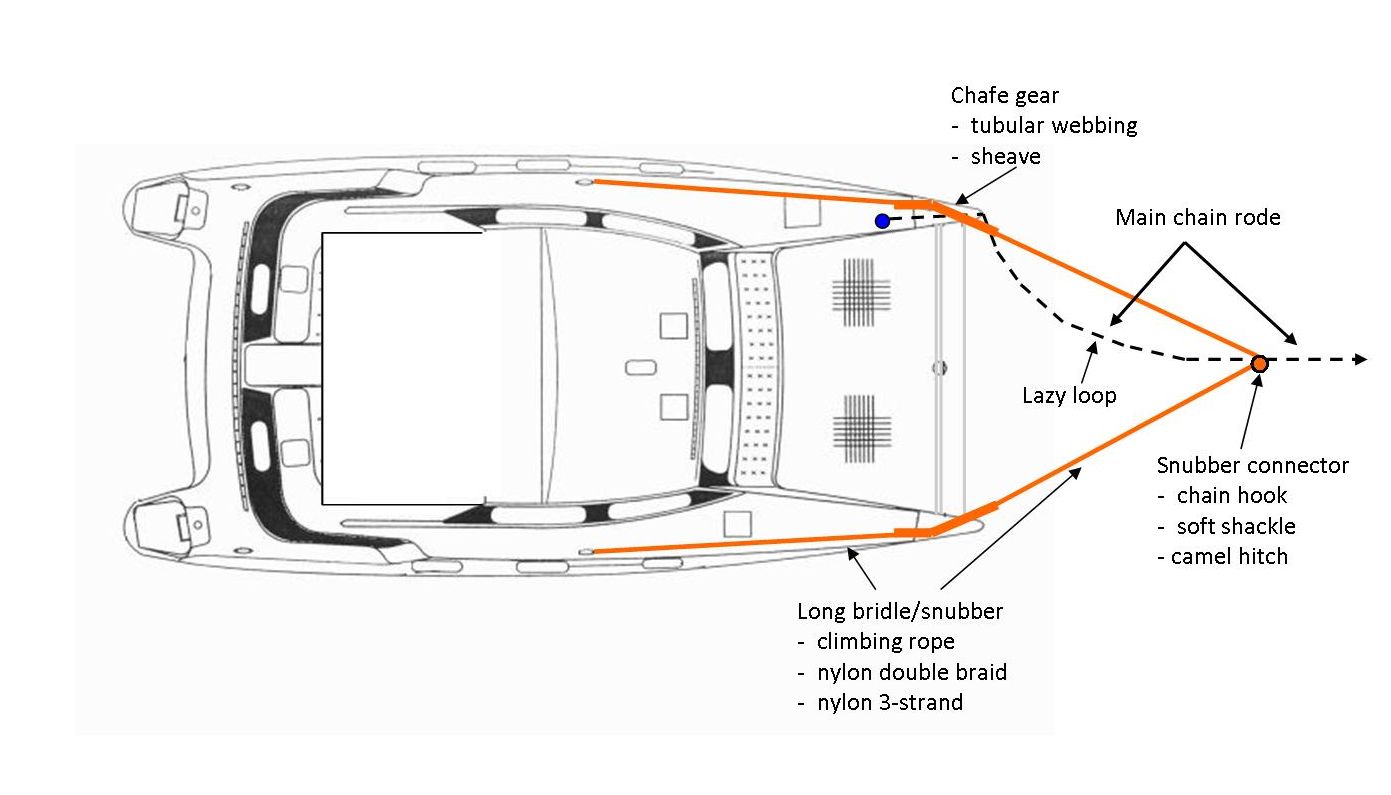

For larger boats or those around coral and rocks, all chain is nice. Rig a LONG snubber, even if you have to cleat it at the mid-ships or stern cleats to keep the connection off the bottom.
My PDQ came with rope, but I changed to chain and a long snubber after a few years. I liked the increased security, but the main reason was that the windlass handled all-chain better than chain with a splice.

In my mind, if your anchor is 35 pounds or more, you will be better served by a windlass and all chain, and if it is 15 pounds or less, manual handling and rope makes more sense. At 25 pounds, the decision is up to you, depending on pocketbook, fitness, and sensitivity to weight in the bow. I'd probably go with chain and a winch on a monohull or heavy cat, and manual with rope on a fast multihull.

 With smaller boats and mud bottoms, the rope is a better answer. It is much lighter, gives good shock absorption, and lasts as long or longer, if it is protected from chafe. You see, chain will fail from corrosion in 5-7 years, even if you don't anchor out, whereas nylon can go even longer if oversized a bit. So go oversize for durability and ease of handling. Finally, nylon can actually be too stretchy if over 100 feet are out, and oversize rope reduces this.
My 24-foot, 1700-pound trimaran only calls for 3/8-inch nylon rode, but I like 1/2-inch for better handling, durability, and reduced stretch. I did the same on my Stiletto 27.

I've even gone to a Dyneema bridle to reduce yawing and to reduce the sometimes-excessive stretch of all-nylon rode. Because the bridle does not distort under shifting loads, yawing is reduced.

[Images excerpted from Rigging Modern Anchors.]
